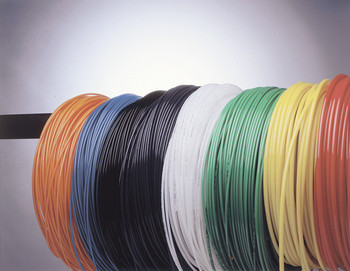

John Guest 1/2" Polyethylene Tubing (250 FT)

SKU:
PE-16-GI-0250F-B
Condition:
New
Weight:
12.00 LBS
Shipping:
Calculated at Checkout
137.88CAD

Description

John Guest Tubing is accepted by almost all the world’s beer and beverage producers and by the manufacturers of drinks dispenser equipment. John Guest products have quality and performance approvals from leading testing and acceptance authorities. John Guest LLDPE tubing is suitable for potable cold water applications with a maximum chlorine content of 4 parts per million (4 ppm). Heating water above 70ºF (20ºC) and or pressures above the maximum will significantly reduce service life. Direct exposure to sunlight will also significantly reduce its useful service. As part of good practice tubing should be inspected regularly. If there is any evidence of damage, hardening or cracking it should be replaced immediately.

SPECIFICATION

  • Pipe Size: 1/2"
  • Suitable for cold and intermittent hot water applications
  • Odorless, tasteless, and non-toxic
  • Broad chemical compatibility
  • FDA and NSF certified
  • Strong, flexible and robust
  • Maximum working temperature 150ºF
  • Maximum working pressure 230 psi
  • Minimum working temperature 33ºF

 PNEUMATICS APPLICATIONS

  • John Guest LLDPE tube is suitable for pneumatic applications providing pressure is maximum 10 bar @ 20ºC (150psi @ 70ºF)
  • At elevated temperatures(50ºC+) mineral oil will degrade LLDPE tube and, therefore, LLDPE tube used in pneumatic circuits should be periodically checked and replaced if necessary

EXPOSURE TO ULTRAVIOLET LIGHT

  • Only black or blue tube should be installed in areas exposed to any light if biofilm growth is considered an issue
  • Black tube is also UV stabilised and can be installed where exposed to direct sunlight (UV)
  • In this case other colours must be protected from exposure to light

TUBE INSERTS

  • If the tube is used in a warm water system a tube insert is necessary

For use with chemicals or other potentially aggressive liquids, please refer to John Guest Customer Services Department (001) 973 808 5600

Super Speedfit fittings and related products are not recommended for use with explosive gases, petroleum spirits, and other fuels or for central heating systems
