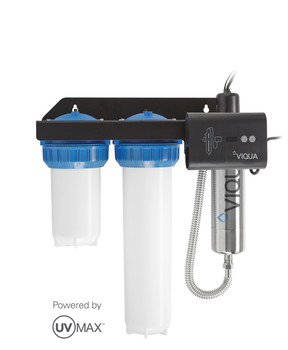

Viqua IHS22-D4 Three Stage Whole House Purification System with 12 GPM UV Sterilizer

SKU:
IHS22-D4
Condition:
New
Weight:
35.00 LBS
Shipping:
Calculated at Checkout
  • Viqua IHS22-D4 Three Stage Whole House Purification System with 12 GPM UV Sterilizer
  • Viqua IHS22-D4 Three Stage Whole House Purification System with 12 GPM UV Sterilizer
1,702.58CAD

Description

PRODUCT DOCUMENTATION

 Viqua Integrated Water Purification System combines 5 micron 20"BB sediment, 10 micron 20"BB carbon block filter and 12 GPM Trojan D4 UV sterilizer. This compact water filtration system is a perfect choice for home or cottage application with a water flow above 10 GPM.

FEATURES & BENEFITS

  • Designed to destroy Bacteria, Viruses and inactivate chlorine-resistant parasites such as Cryptosporidium and Giardia
  • Stainless steel chamber to prolong UV intensity and eliminate ultraviolet light degradation
  • Easy to maintain and service
  • The BA-ICE-CL power supply visually displays the remaining lamp life
  • UV lamp can be changed without interrupting the water flow
  • 5 Micron 10"BB sediment filter
  • 10 Micron 20"BB carbon block filter
  • Viqua Trojan D4 (650694-R) UV system
  • Reversible, heavy duty bracket

SPECIFICATION

  • Part Number: IHS22-D4
  • Disinfection Flow Rate: 30 mJ/cm2 @ 12 gpm
  • Disinfection Flow Rate: 40 mJ/cm2 @ 9 gpm
  • The UV Lamp Life: 9000 hours of continuous purification
  • Connection Size: 3/4" MNPT
  • Power Consumption: 50W
  • Voltage: 100-240V/50/60 Hz
  • Maximum Operating Pressure: 125 PS

REPLACEMENT PARTS

  • Replacement UV Lamp: 602805
  • Replacement UV Sleeve: 602732
  • Replacement Lamp & Combo Kit: 602810-102
  • Replacement Power Supply: 650713-007
  • Safety Cap: 603000
  • 20"BB Filter Housing: AWP42B-V
  • 20" 5 Micron Sediment Cartridge: CMB-520-HF
  • 20"BB 10 micron Carbon Block Cartridge: C2-02

WATER QUALITY REQUIREMENTS PRIOR TO UV TREATMENT

  • Iron < 0.3 ppm (0.3 mg/L)
  • Manganese < 0.05 ppm (0.05 mg/L)
  • Hardness < 7gpg
  • Tannins < 0.1 ppm (0.1 mg/L)
  • Turbidity < 1NTU UV transmittance > 75%
