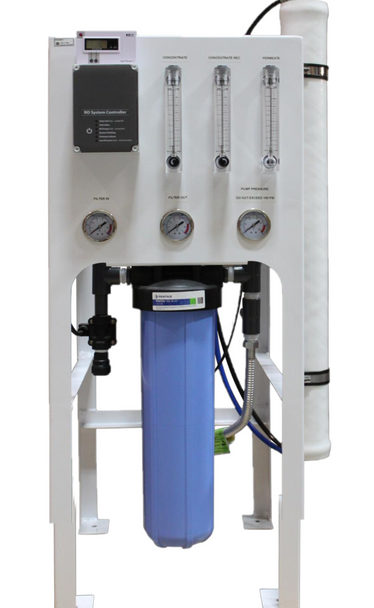

Pro Line Reverse Osmosis System 2600 GPD

 PRODUCT DOCUMENTATION:

• Pro Line RO System Brochure
• Pro Line RO System Manual

BASIC MODEL FEATURES:

• Webtrol Stainless Steel Multi-Stage Pump
• Motor Thermal Overload Protection
• Ultra Low Energy Membrane Elements (1 Membrane)
• Stainless Steel Membrane Housings (1 Housing)
• 5 Micron Sediment Filter Cartridge (4.5" x 20")
• 20" BB Filter Housing
• Permeate Flow Meter
• Concentrate Flow Meter with Adjustable Needle Valve
• Low Pressure Switch
• Recycle Flow Meter with Adjustable Needle Valve
• Pump Operating Pressure Gauge
• Pre-Filter In/Out Pressure Gauge
• Product Water Check Valve
• Pretreatment Lockout
• Ideal for less than 2000 TDS Water

DELUXE MODEL FEATURES:

• Auto-Flush Solenoid Valve & Multiple Programming
• Dual Probe TDS
• Fiberglass Membrane Housings
• Powder-Coated Aluminum Frame

FEED WATER REQUIREMENT:

• Design Temperature: 77°F
• Max. Feed Temperature: 85°F
• Min. Feed Temperature: 40°F
• Max. Feed Pressure: 85 psi
• Min. Feed Pressure: 45 psi
• Max. Operating Pressure: 150 psi
• Max. Turbidity NTU: 1
• Max. Free Chlorine: 0 ppm
• Max. TDS: 2000 ppm
• Max. Hardness: 1 GPG
• pH (3-11)

SPECIFICATIONS:

• Nominal Salt Rejection: 98.5%
• Permeate Flow Rate: 3.6 gpm
• Concentrate Flow Rate: 2.0 gpm
• Feed Connection: 3/4" CTS QC
• Permeate & Concentrate Connection: 1/2" QC
• Membrane Quantity: 1
• Membrane Size: 4" x 40"
• Pump: Multi-Stage (3/4 HP)
• Standard Voltage: (110V/60Hz)
