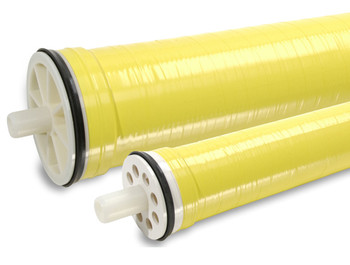

Filmtec XLE-2540 Brackish Water Commercial Extra Low Energy Membrane Element 850 GPD (2.5" x 40")

SKU:
XLE-2540
Condition:
New
Weight:
12.00 LBS
Shipping:
Calculated at Checkout
514.90CAD

Description

PRODUCT DOCUMENTATION

SPECIFICATION

  • Part Number: XLE-2540
  • Alternative Part Number: 154543
  • Applied pressure (100 PSI)
  • Provides lower energy costs and more productivity, especially in cold waters
  • Permeate Flow Rate: 850 gpd, 3.2 m3/d
  • Salt Rejection: 99.0%
  • Product Type: Polyamide Thin-Film Composite

OPERATING LIMITS

  • Maximum Operating Temperature a 113°F (45°C)
  • Maximum Operating Pressure 600 psig (41 bar)
  • Maximum Element Pressure Drop 13 psig (1.0 bar)
  • pH Range, Continuous Operation a 2 – 11
  • pH Range, Short-Term Cleaning (30 min.) 1 – 13
  • Maximum Feed Silt Density Index (SDI) SDI 5
  • Free Chlorine Tolerance  < 0.1 ppm

USE IN

  • Commercial water treatment systems
  • Medical and research institutions
  • Hospitality industry
  • Food service
