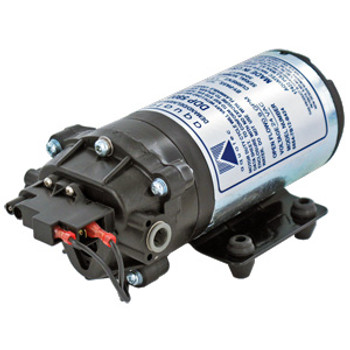

Aquatec 5800 Series 0.95 GPM Delivery Demand Pumps 24VDC 1/4"JG (5844-8D01-B594)

SKU:
5844-8D01-B594
Condition:
New
Weight:
7.00 LBS

Description

DISCONTINUED!

replacement pump : 5844-8E01-B594



PRODUCT DOCUMENTATION

SPCIFICATION

For User Safety, Optimal Performance, and Maximum Motor Life, This Motor is Equipped with a Thermal Protector that Limits the Motor Shell Temperature to 145°F (63°C)

  • 0.95 GPM
  • 50 PSI By-Pass
  • Totally Enclosed
  • Self-Priming
  • Permanent Magnet
  • Highly efficient
  • 3 Chamber Diaphragm Pump
  • Inlet & Outlet 1/4"" quick connect
  • Max Temperature: 170°F (77°C)
  • Capable of Being Run Dry
  • 24VDC 60 HZ

 TYPICAL APPLICATIONS:

  • Water Treatment/RO
  • Beverage/Foodservice
  • Distillation Equipment
  • Agricultural Spraying
  • General Industrial
  • Automotive
View AllClose

Warranty Information

Aquatec Water Systems, Inc. (“Aquatec”) warrants its products to be free from defects in material and workmanship under the following terms: All Aquatec products with the exception of series 68XX, ERP 1000 and Aquajet model pumps: The warranty will last for a period of thirteen months from date of shipping from an Aquatec warehouse. Warranty period for 68XX and ERP 1000 is twenty-five months from date of shipment from Aquatec. Aquatec’s obligation under this warranty shall be limited to replacing or repairing at Aquatec’s discretion, any such product or part which must be returned to Aquatec’s factory with a Return Material Authorization Number (RMA), transportation charges approved by Aquatec or prepaid, and which upon examination, is found to Aquatec’s satisfaction to have been defective under the terms of this warranty. No credit will be allowed against future purchases for items returned as defective under the terms of Aquatec’s warranty. This warranty does not extend to any products, which have been altered or modified outside the Aquatec factory, nor does it apply to units that are returned in an unassembled condition. Furthermore, the warranty does not extend to pumps that are identified by a 9XXX model number, indicating non-compliance with Aquatec’s Engineering Standards. This includes, but is not limited to, pumps ordered without an integral pressure control mechanism. The warranty guarantees that products will perform to Aquatec’s flow and pressure specifications throughout the life of the warranty. The warranty does not cover wear, appearance, misapplication or external water damage. If the returned product is found not to be defective under the conditions of this warranty, a charge will be made for repair or replacement. Brush wear may be limited to 1000 hours or less. This is a Limited Warranty. It covers the product only and the extent of the coverage is limited to the cost of the product. As the manufacturer has no control over shipping, handling and installation, the warranty cannot cover water damage, or any other damage, caused by a leak or other malfunction. This warranty is in lieu of all other warranties, expressed or implied, and no person is authorized to give any other warranty or assume obligation or liability in Aquatec’s behalf. Aquatec shall not be liable for any indirect, incidental or consequential damages of any kind incurred by the reason of the use or sale of any defective product and part.
