Acid Neutralizer 1.5 Cu Ft Automatic Back Wash Systems w/Clack WS1 Valve (10" x 54" Resin Tank) FOR FREIGHT COST CALL 1 888 556 8715

SKU:
4023-CCF15-WS1BW1054
Condition:
New
Weight:
190.00 LBS
Shipping:
Calculated at Checkout
  • Acid Neutralizer 1.5 Cu Ft Automatic Back Wash Systems w/Clack WS1 Valve (10" x 54" Resin Tank) FOR FREIGHT COST CALL 1 888 556 8715
  • Acid Neutralizer 1.5 Cu Ft Automatic Back Wash Systems w/Clack WS1 Valve (10" x 54" Resin Tank) FOR FREIGHT COST CALL 1 888 556 8715
  • Acid Neutralizer 1.5 Cu Ft Automatic Back Wash Systems w/Clack WS1 Valve (10" x 54" Resin Tank) FOR FREIGHT COST CALL 1 888 556 8715
  • Acid Neutralizer 1.5 Cu Ft Automatic Back Wash Systems w/Clack WS1 Valve (10" x 54" Resin Tank) FOR FREIGHT COST CALL 1 888 556 8715
902.00CAD

Description

Product Documentation:

 APPLICATION

  •  pH Adjustment of Acidic Water. Acid Neutralizer helps prevent corrosion of copper pipes and plumbing fixtures by effectively raising low pH (acidic) water.

SPECIFICATION

  • Model: 4023-CCF15-WS1BW-1054  (Automatic Back Wash Acid Neutralizer Systems)
  • Media: 1.5 Cu Ft of Corosex

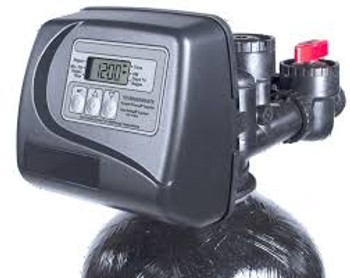

  • Control Valve: Clack WS1 with Clack By Pass & 3/4" Brass (lead free) Connector
  • Media Tank: 10" x 54" Poly Glass Dome Hole Tank
  • Dimensions: Height 70" (132.1 cm), Diameter 10" (30.5 cm)
  • Approximate Weight: 190 lb (111.2 kg)
  • Flow Rate: 7 gpm (26.5 lpm)
  • Maximum Water Temperatur: 110°F (43.3°C)
  • Max. Water Pressure: 100 psi (689 kPa)

 MAINTENANCE

The COROSEX media requires periodic replenishment depending on the amount of water used and the degree of acidity.

The neutralizer should be checked every 3-6 months to make sure that the media is no more than 2” below the media fill line.

The fillport located on the top of the tank permits simple replenishment of the used media.
