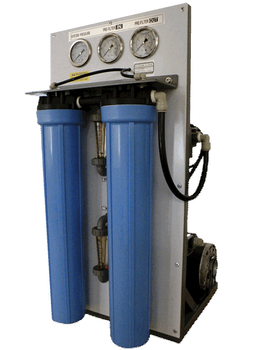

ROS/COMP-II-450 Compact II Reverse Osmosis System 475+ GPD (120V/60Hz)

SKU:
ROS/COMP-II-450
Condition:
New
Weight:
66.00 LBS

Description

PRODUCT DOCUMENTATION

ROS/COMP-II-450 Compact Reverse Osmosis System with Low Energy Membrane 475+ GPD (120V/60Hz)

STANDARD FEATURES

  • Low energy reverse osmosis membrane
  • Stainless steel membrane vessel
  • Powder-coated steel frame
  • Liquid-filled system pressure gauge and inlet/outlet pre-filter gauges
  • Fixed waste / recycle flow controls, stainless steel
  • Storage tank pressure switch
  • Feed water inlet solenoid valve
  • Feed water low pressure switch
  • Rotary vane pump
  • 1/2 to 3/4 hp motor
  • 20” 5 micron sediment pre-filter (1)
  • 20” carbon block pre-filters (2)
  • 110 volt—50/60hz

OPTIONS

  • Nano-filtration membrane (Removes 98% hardness, up to 85% TDS,high recovery rate)
  • 220V/60Hz
  • 220V/50HZ
  • Product and Waste Flow Meters
  • Float switch sold separately here.
  • Tank pressure switch pre-set at 40psi.

FEED WATER REQUIREMENTS

  •  Temperature 85 F maximum
  • Pressure 40 - 80 psi maximum
  • TDS 2000-5000ppm (consult Dealer for specific model)
  • Iron tolerance 0.5ppm maximum
  • Hydrogen sulfide must be removed
  • Silica tolerance can not be higher than 100 ppm in the concentrate stream.
  • Antiscalant should be considered for any levels over 75 ppm
  • Turbidity should be removed
  • Hardness over 10gpg should be softened

SPECIFICATION

  • Operating pressure range from 150-200 psi maximum
  • Water recovery is factory set at 50-60%
  • pH range 3 - 11
  • Typical membrane salt rejection is 95-99%
  • Dimensions 14"x 16"x 30"
  • Weight 61.0 lbs
  • Recovery Rate 50% to 60%
  • Inlet Line 1/2"
  • Product Line 3/8"
  • Waste Line 3/8"
  • Made in U.S.A.

REPLACEMENT FILTERS

  • Sediment Filter
  • Carbon Filter
  • RO Membrane (4.0" x 14")
